• Model NO.：VENUS LIGHT BAR
• Max Power：396W
• Installation：Mount Bracket
• Flash Pattern：40 Kinds
• Net W / G Weight：10.5kg,12kg
• Transport Package：Carton
• Specification：1200mm L 280mm W 110 mm H
• Trademark：LIANHENG
• Origin：Wenzhou of China
• HS Code：8512209000
• Production Capacity：50000 PCS ,Years

Basic Info.

Model NO. VENUS LIGHT BAR Max Power 396W Installation Mount Bracket Flash Pattern 40 Kinds Net W / G Weight 10.5kg/12kg Transport Package Carton Specification 1200mm L 280mm W 110 mm H Trademark LIANHENG Origin Wenzhou of China HS Code 8512209000 Production Capacity 50000 PCS /Years

Product Description

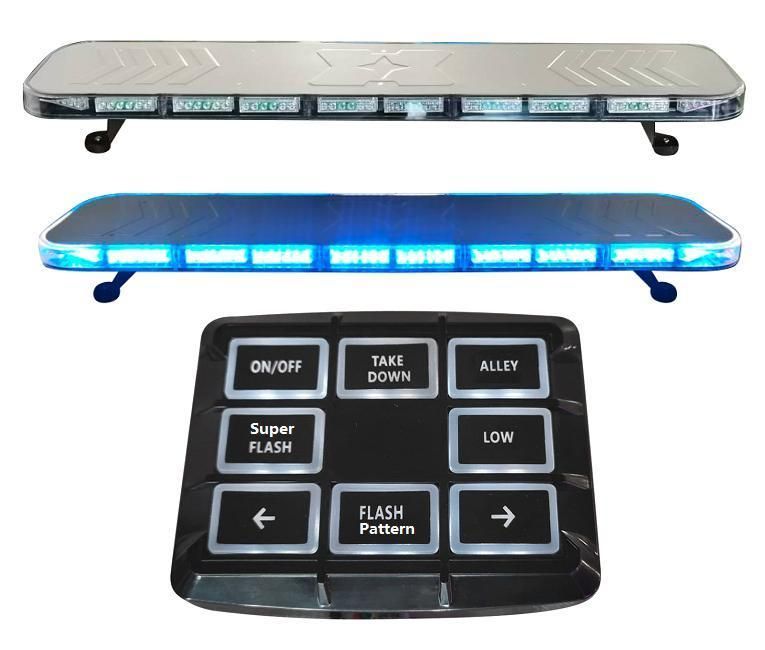

Streamlined design , low-profile and aerodynamic design to makes the product one of the thinnest and lightest LED lightbars on the market .

The most advanced LED lens technology, pwm frequency-converting techniques and 12/24V feature high lighting performance, low amp draw, and wide application scenarios .
Available in single and dual color models.

12 cores sheathed cable :

Thick red wire:   To 10-28V/DC (15A Fuse)

Thick black wire: Ground

Yellow wire: Flash pattern ,(to + 12VDC more than 1 second to next pattern, more than 3 seconds return first pattern ,

Continuously to +12VDC 3 times , all lights steady on.

White wire:To 10-28V/DC to turn on two white lights in middle in front row lights . second time ,the lights flash , third time turn off the two lights ,then the two lights work with all lights .

Thin red wire: Control front row lights To 10-28V/DC

Blue wire : Left arrow lights of  rear row lights , To 10-28V/DC

Purple wire: Right arrow lights of rear row lights ,To 10-28V/DC

(Lights go from center to both sides when blue wire and purple wires connect to 10-28V/DC together )

Brown wire:MODE 1, To 10-28V/DC

Orange wire :Control rear row lights to 10-28V/DC

Green wire:MODE 2 (It is Prior to MODE1), To 10-28V/DC



Gray wire :Connect to 10-28V/DC first time to turn on both sides alley light , second time to connect 10-28V/DC ,both

alley lights flash ,third time connect to 10-28V/DC  to turn off alley lights . then alley lights work with all lights .



Thin black wire :MODE 3 (It is prior to MODE1 and MODE2), To 10-28V/DC
