• Model NO.：TH-BT0306Z-5D
• Power Output：18 Watts
• LEDs：6PCS*3030 SMD
• Lumen：720lm
• Optional Beam：Spot,Flood
• Bracket：with Thin Bottom-Mounting Brackets
• Len Materia：Polycarboante Lens
• Materia：Diecast Aluminum Housing, Alum Alloy Bracket
• Waterproof Rate：IP68
• Length Size：4",9.5cm
• Transport Package：One Piece in One Box, Twenty Boxes in One Carton
• Specification：Carton size: 50*32*29cm
• Trademark：Teehon
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：15000 PCS Per Months

Basic Info.

Model NO. TH-BT0306Z-5D Power Output 18 Watts LEDs 6PCS*3030 SMD Lumen 720lm Optional Beam Spot/Flood Bracket with Thin Bottom-Mounting Brackets Len Materia Polycarboante Lens Materia Diecast Aluminum Housing, Alum Alloy Bracket Waterproof Rate IP68 Length Size 4"/9.5cm Transport Package One Piece in One Box, Twenty Boxes in One Carton Specification Carton size: 50*32*29cm Trademark Teehon Origin Guangzhou China HS Code 8512201000 Production Capacity 15000 PCS Per Months

Product Description

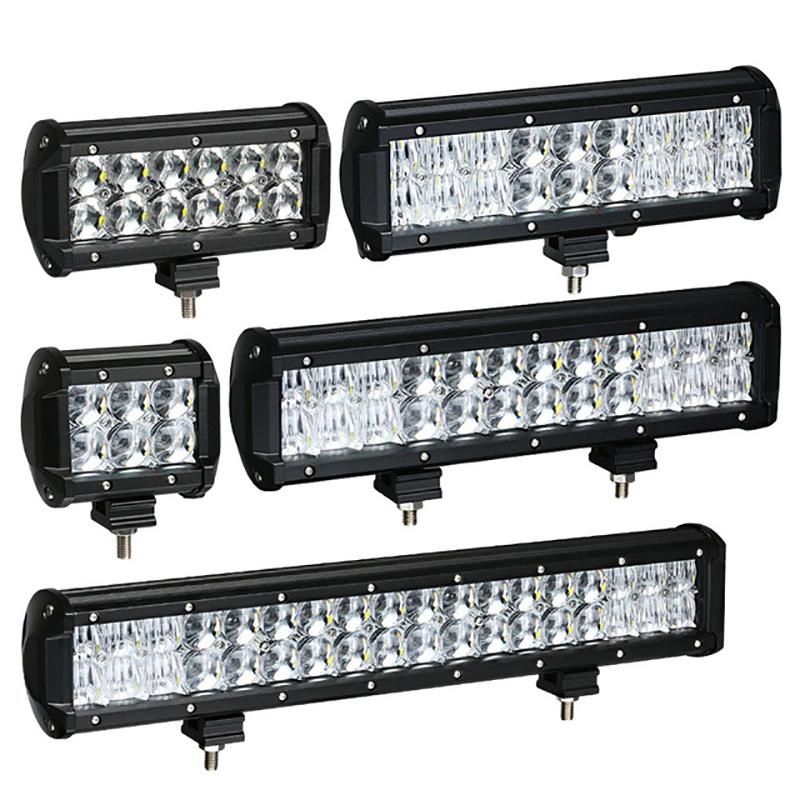

5D 18W LED Work Light Bar Lighting for Mining

Car Offroad Working Light Bar Advantages:
1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate,due to the adoption of Korean components;
4. Straight Double-Row designed
5. With thin bottom-mounting brackets
6. With 5D optical lens

The Specification of Led Power Spot Light:

ITEM	DESCRIPTION
Model Number	TH-BT0306Z-5D
Power Output	18 Watts
Operating Voltage	DC9~60V
LED Chip	6pcs*3030 SMD
Lumens	720lm
Color Temperature:	6000K
Waterproof rating	IP68
Optional Beam Pattern	Spot/flood
Housing Material	Diecast aluminum housing
Mounting Bracket	alum alloy bracket
Bracket	With thin bottom-mounting brackets
Len Materia	polycarboante lens,With 5D optical lens
Housing item	Straight Double-Row designed
Length Size	4"/9.5cm
Life Span	Above 30,000 hours
Wire Length	60cm
Warranty	12 months

Led Flood Light Bar Qualifications:


Hot offroad led bar B 5D Series Size:

Model	Length Size	Power	LED Type	LED Quantity	Lumens	Beam
TH-BT0306Z-5D	4"/9.5cm	18W	3030 SMD	6pcs	720lm	Spot/Flood
TH-BT0312Z-5D	6"/16.3cm	36W	3030 SMD	12pcs	1440lm	Spot/Flood
TH-BT0318Z-5D	9"/23.1cm	54W	3030 SMD	18pcs	2160lm	Spot/Flood/Combo
TH-BT0324Z-5D	12"/29.9cm	72W	3030 SMD	24pcs	2880lm	Spot/Flood/Combo
TH-BT0330Z-5D	14"/36.7cm	90W	3030 SMD	30pcs	3600lm	Spot/Flood/Combo
TH-BT0336Z-5D	17"/43.5cm	108W	3030 SMD	36pcs	4320lm	Spot/Flood/Combo
TH-BT0342Z-5D	20"/50.3cm	126W	3030 SMD	42pcs	5040lm	Spot/Flood/Combo
TH-BT0348Z-5D	22"/57.1cm	144W	3030 SMD	48pcs	5760lm	Spot/Flood/Combo
TH-BT0366Z-5D	31"/77.5cm	198W	3030 SMD	66pcs	7920lm	Spot/Flood/Combo
TH-BT0378Z-5D	36"/91.1cm	234W	3030 SMD	78pcs	9360lm	Spot/Flood/Combo
TH-BT0396Z-5D	44"/111.5cm	288W	3030 SMD	96pcs	11520lm	Spot/Flood/Combo

work light bar led Detail Image:




Offroad Driving Work Light Application:

Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of Auto parts led light, LED Work Light and LED headlight. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.


Production Facilities:

Name	No.	Name	No.
(Fuji, Panasonic, Casio) SMT machines	4	pressure testers	3
hot air-reflow systems	2	UV-VIS-Near IR Spectro photo colorimeter	2
wire peeling machines	4	LCR Digital Electric Bridges	3
laser carving machines	2	Oscilloscopes	5
automatic wire peeling machines	2	integrating sphere	1

Size and Package Car Offroad Working Light Bar:

Name	piece	G.W	Size
One piece	1pcs	0.53kgs	23*20*11CM
One carton	20pcs/ctn	10.5kgs	50*32*29CM


Shipping for Led Power Spot Light:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs Led Flood Light Bar & 90,000pcs Rohs Ce LED Work Lights each month.
4.Extraordinary quality & cost control ability: we are the only auto LED light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.
 The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.
  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30   advanced producing & testing facilities

FAQ:

Q: What's your Hot offroad led bar after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q: Do you accept ODM&OEM work light bar led orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and LED bulbs in different brands, we also customize circuit board & packaging box as per your requirements.

Q: How to work with you on ODM&OEM Offroad Driving Work Light orders?
A: There are three forms of cooperation for choice:
1.Housing customization: we need to negotiate the cost of development and reach an agreement before starting the cooperation;
2.Various colors of housing customization: No extra cost, however the MOQ is 100 pcs;
3.Various colors of LED bulbs customization: MOQ is 10 pcs, meanwhile the price will be increased.

Q: What's the Auto parts led light MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q: How long is Car Offroad Working Light Bar lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q: How to place Led Power Spot Light orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
