• Model NO.：TH-GD1848S2
• Power Output：144 Watts
• LEDs：48PCS*2832 SMD
• Lumen：5760lm
• Optional Beam：Spot Beam Only
• Bracket：Iron Bracket
• Dual-Colour Flash：Amber,White
• Len Materia：Polycarboante Lens
• Materia：Diecast Aluminum Housing, Aluminum Alloy Bracket
• Waterproof Rate：IP68
• Dimension：29.3(L)*7.5(W)*4.8(T)Cm
• Transport Package：One Piece in One Box, Twelve Boxes in One Carton
• Specification：Carton size: 61*32*37cm
• Trademark：Teehon
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：15000 PCS Per Months

Basic Info.

Model NO. TH-GD1848S2 Power Output 144 Watts LEDs 48PCS*2832 SMD Lumen 5760lm Optional Beam Spot Beam Only Bracket Iron Bracket Dual-Colour Flash Amber/White Len Materia Polycarboante Lens Materia Diecast Aluminum Housing, Aluminum Alloy Bracket Waterproof Rate IP68 Dimension 29.3(L)*7.5(W)*4.8(T)Cm Transport Package One Piece in One Box, Twelve Boxes in One Carton Specification Carton size: 61*32*37cm Trademark Teehon Origin Guangzhou China HS Code 8512201000 Production Capacity 15000 PCS Per Months

Product Description

Multi-Color Flash 144W LED Offroad Light Bar for Car

Straight led bar light Advantages:
1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate,due to the adoption of Korean components;
4. 5 working modes: white steady on, amber steady on, white flash, amber flash, white/amber alternate flash
5. Anti-fog designed, with an air breather

The Specification of led high bar light:

ITEM	DESCRIPTION
Model Number	TH-GD1848S2
Power Output	144 Watts
Operating Voltage	DC9~60V
LED Chip	48PCS*2832 SMD
Lumens	5760lm
Color Temperature:	6000K
Waterproof rating	IP68
Optional Beam Pattern	Spot Beam Only
Housing Material	Diecast aluminum housing
Dual-Colour Flash	Amber/White
Bracket	Iron Bracket
Len Materia	polycarboante lens
Housing item	Anti-fog designed
Length Size	29.3(L)*7.5(W)*4.8(T)cm
Life Span	Above 30,000 hours
Wire Length	60cm
Warranty	12 months

Flashing Lightbar Qualifications:

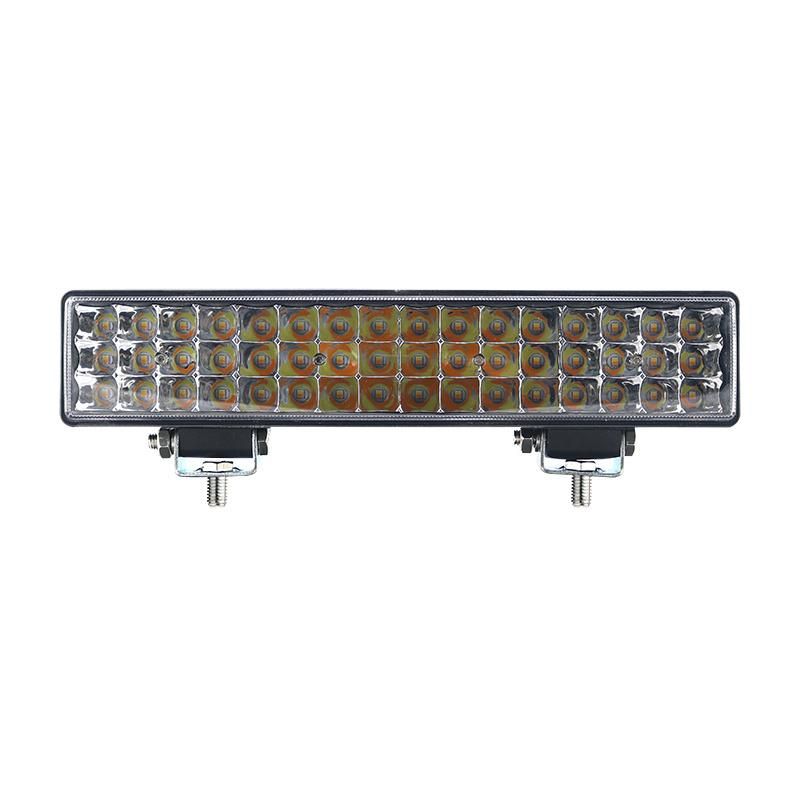

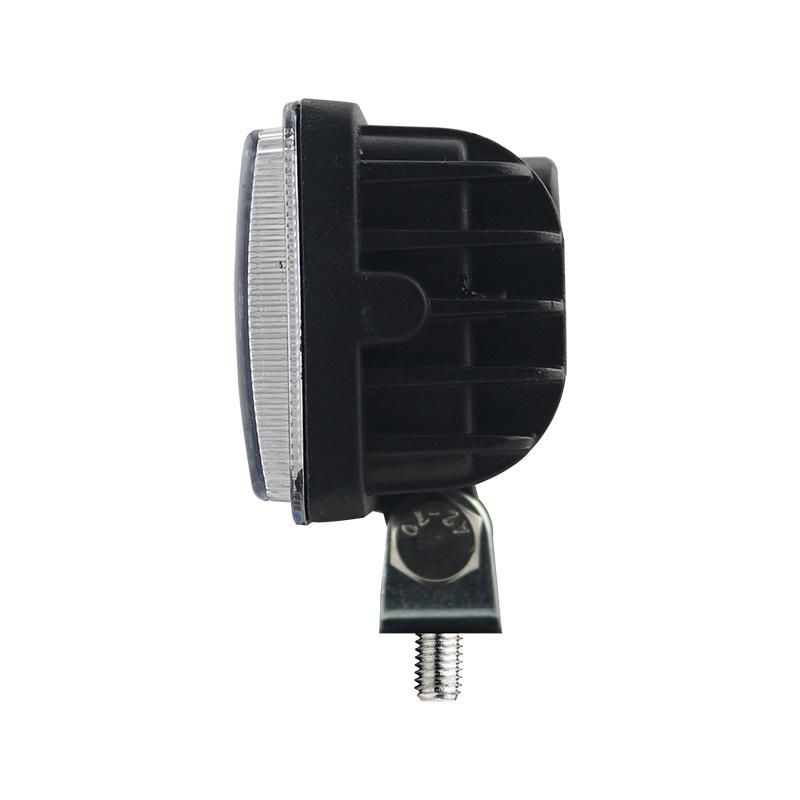

LED Lightbar for 4X4 Detail Image:





Automotive LED Bar Application:

Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of Motorcycle LED Bar and LED headlight. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.

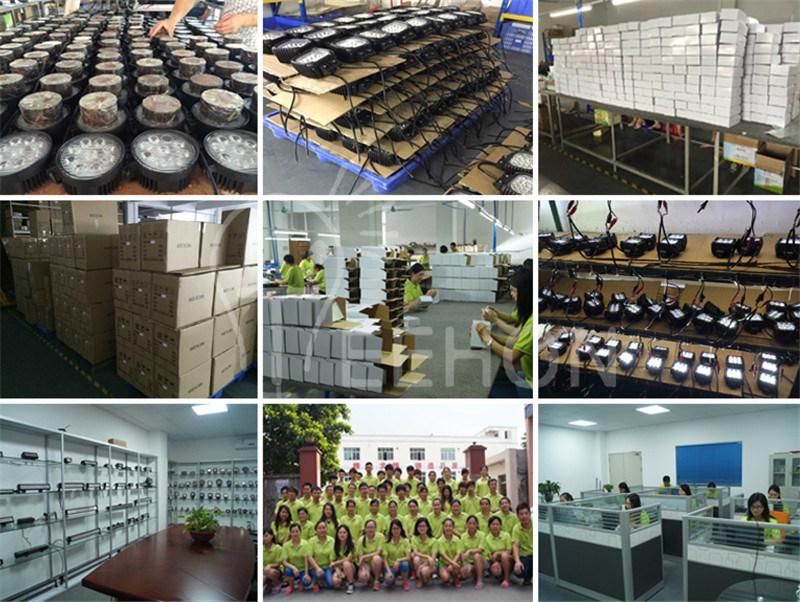

Production Facilities:

Name	No.	Name	No.
(Fuji, Panasonic, Casio) SMT machines	4	pressure testers	3
hot air-reflow systems	2	UV-VIS-Near IR Spectro photo colorimeter	2
wire peeling machines	4	LCR Digital Electric Bridges	3
laser carving machines	2	Oscilloscopes	5
automatic wire peeling machines	2	integrating sphere	1

Size and Package Motorcycle LED Lighting:

Name	piece	G.W	Size
One piece	1pcs	1kgs	23*20*11CM
One carton	12pcs/ctn	12kgs	61*32*37CM


Shipping for Straight led bar light:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs led high bar light & 90,000pcs Rohs Ce LED Work Lights each month.
4.Extraordinary quality & cost control ability: we are the only auto LED light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.
 The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.
  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30   advanced producing & testing facilities

FAQ:

Q: What's your Flashing Lightbar after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q: Do you accept ODM&OEM LED Lightbar for 4X4 orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and LED bulbs in different brands, we also customize circuit board & packaging box as per your requirements.

Q: How to work with you on ODM&OEM Automotive LED Bar orders?
A: There are three forms of cooperation for choice:
1.Housing customization: we need to negotiate the cost of development and reach an agreement before starting the cooperation;
2.Various colors of housing customization: No extra cost, however the MOQ is 100 pcs;
3.Various colors of LED bulbs customization: MOQ is 10 pcs, meanwhile the price will be increased.

Q: What's the Motorcycle LED Bar MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q: How long is Motorcycle LED Lighting lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q: How to place Straight led bar light orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
