• Model NO.：RH-C25
• Brand Name：Harmony Lighting
• Factory Address：Guangdong of China
• LED Type：Osram
• Range：Hotel,Building, Bridge
• Products Type：LED Bar Light& LED Wall Wsher Light
• Material：Aluminum
• Luminous Flux：100-130lm,W
• Emmiting Angle：120degree
• Average Life：50000 Hrs
• Transport Package：Outer Box up to Export Standard
• Specification：CE, ROHS, CCC, ISO9001
• Trademark：Harmony Lighting
• Origin：Guangdong of China
• HS Code：9405409000
• Production Capacity：1000meters,Day

Basic Info.

Model NO. RH-C25 Brand Name Harmony Lighting Factory Address Guangdong of China LED Type Osram Range Hotel,Building, Bridge Products Type LED Bar Light& LED Wall Wsher Light Material Aluminum Luminous Flux 100-130lm/W Emmiting Angle 120degree Average Life 50000 Hrs Transport Package Outer Box up to Export Standard Specification CE, ROHS, CCC, ISO9001 Trademark Harmony Lighting Origin Guangdong of China HS Code 9405409000 Production Capacity 1000meters/Day

Product Description

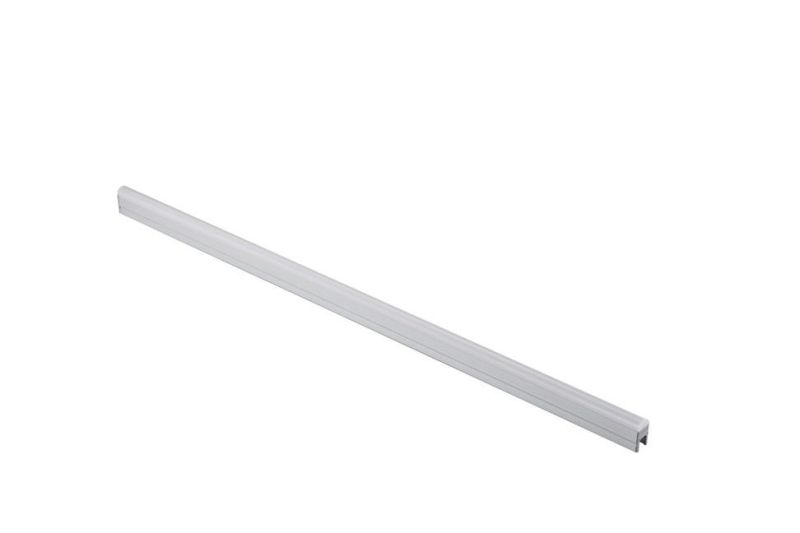

 500mm Aluminum Extrusion LED Wall Washer Light


New design Feature:
1.simple  industrial appearance design,bloom the beauty of pure line. Easy to install.Integrated light into buillding ,add color for city.The surface of the lamp body is oxidized,wear-resisting and rust-proof,which made it able to resist the bad weather efffectively.
2.Combined with LED light Angle calculation, a variety of light ways, to show the uniform smooth bright soft and comfortable effect.The unique process design of the end cover can effectively solve the dark area between the lamp and the lamp.
3.Core configuration aspect:multi-color with DMX control system, using high grey grate 65536 chips , refresh rate reach 4K.The program plays smoonthly with the speed upto 25ms/frame.
4.Quickly connect male and female plugs, precise pin core hole position, prevent plugs connection worong direction, the connection is firm,stable and reliable, easy to install and remove, not easy to disconnect.
5.The Wires come out from middle body,can transmit to remote place.with groove for hiding wire , can pass two" BW6" wires(outside diameter 6.2MM).
6.The lamp body waterproof fill with fully glue,protection rate upto IP66.




Model	RH-C25
type	SMD LED Rigid strip light
LEDS	48pcs-5050
Certificate	CE,ROHS,CCC,ISO9001
protection Grade	IP66
Power	10W
lifespan	more than 50, 000 hours
input voltage	DC24V
emitting color	W/WW/R/G/B/RGB
base material	aluminum
beam angle	120°
dimming	Could dimmable 5%-100% available
working temperature	-30 degrees  to +50degrees
strobe	NO
control mode	Always lighting,DMX control
loading QTY	8000pcs for 1* 20GP
packing size	106*28*18cm /20pcs
Gross weight	14 KG / Carton

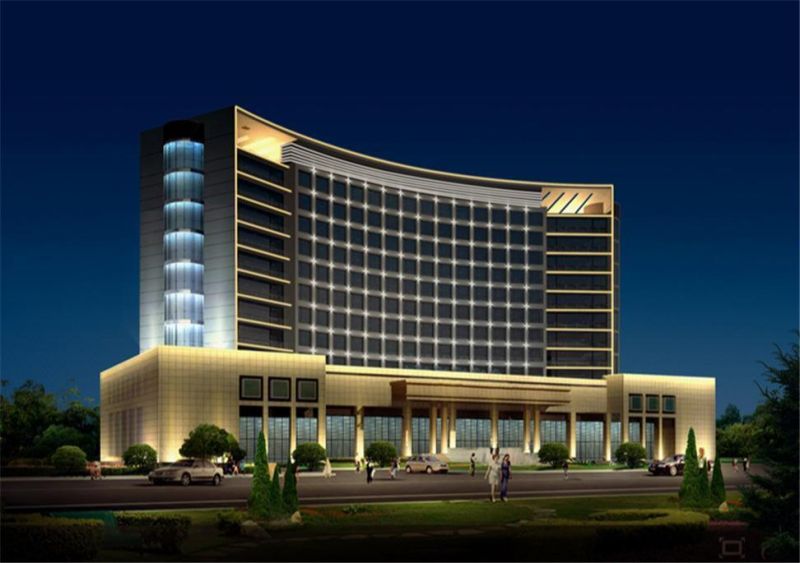

Applications:
1) Ambience lighting for bar, dance hall
2) Lighting for billboard, factory,hotle,building of the outside wall
3) Lighting for landscaping building, wall washing for bars, clubs, Bridge,stages, plazas


Remarks:
1)LED Wall Washer should be used in accordance with the environment requirement
2)DMX512 control system:
A: Set one as a host, the others set as address mode when many sets wall washer working together.
B: Set all the lights to the address mode(001-512), instead of the master internal control mode when the multiple connectors receive the command of DMX signal.
C: Setting the same address code, the lighting change with the same effect;
D: To ensure the transmission of the DMX signal is reliable, when lighting connecting beyond 100M, should increase amplifier to enlarge the DMX signal.
E: The input and output port should meet the requirements, otherwise it will damage lighting.



Harmony's main products:
LED wall washer light,led garden light,LED flood light,



Our service:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into production.
4. Protection of your sales area, ideas of design and all your private information.
5. Best quality and competitive price



Packaging:
Standard packing with box&carton up to export standard or at customer's requirement,



Delivery:
3-9workdays for 1000-3000PCS after deposit, 1-3days for sample
