• Model NO.：TH-F4T1990S2 Combo
• Power Output：270 Watts
• LEDs：90PCS*2832 SMD
• Lumen：10080lm
• Optional Beam：Combo Beam Pattern
• Bracket：with Side-Mounting Brackets
• Dual-Colour Switchable：Amber,White
• Len Materia：Polycarboante Lens
• Materia：Diecast Aluminum Housing, Aluminum Alloy Bracket
• Waterproof Rate：IP68
• Dimension：22",56.4cm
• Transport Package：One Piece in One Box, Twenty Boxes in One Carton
• Specification：Carton size: 50*32*29cm
• Trademark：Teehon
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：15000 PCS Per Months

Basic Info.

Model NO. TH-F4T1990S2 Combo Power Output 270 Watts LEDs 90PCS*2832 SMD Lumen 10080lm Optional Beam Combo Beam Pattern Bracket with Side-Mounting Brackets Dual-Colour Switchable Amber/White Len Materia Polycarboante Lens Materia Diecast Aluminum Housing, Aluminum Alloy Bracket Waterproof Rate IP68 Dimension 22"/56.4cm Transport Package One Piece in One Box, Twenty Boxes in One Carton Specification Carton size: 50*32*29cm Trademark Teehon Origin Guangzhou China HS Code 8512201000 Production Capacity 15000 PCS Per Months

Product Description

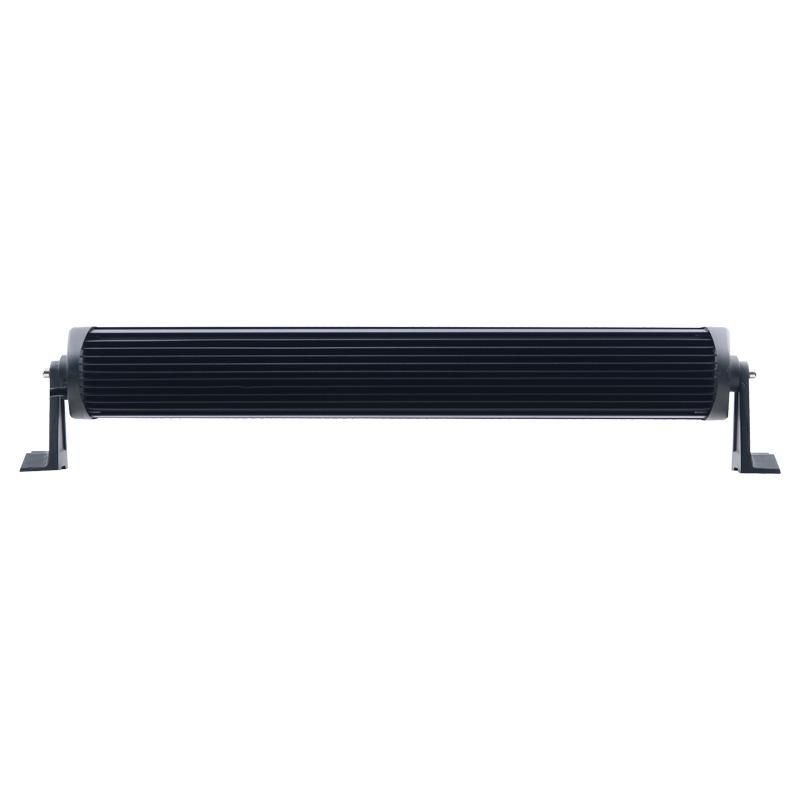

Triple row 270W Automotive Flashing LED Lightbar for 4X4

Motorcycle LED Bar Advantages:
1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate,due to the adoption of Korean components;
4. With side-mounting brackets
5. Straight Triple/Double-row Hybrid designed
6. White/Amber switchable, white for night illumination, amber for foggy weather illumination
7. 3 flash patterns switchable: white flash, amber flash, white/amber alternate flash

The Specification of Motorcycle LED Lighting:

ITEM	DESCRIPTION
Model Number	TH-F4T1990S2 Combo
Power Output	270 Watts
Operating Voltage	DC9~60V
LED Chip	90PCS*2832 SMD
Lumens	10080lm
Color Temperature:	6000K
Waterproof rating	IP68
Optional Beam Pattern	Combo beam pattern
Housing Material	Diecast aluminum housing
Mounting Bracket	aluminum alloy bracket
Bracket	With side-mounting brackets
Len Materia	polycarboante lens
Housing item	Straight Triple/Double-row Hybrid designed
Length Size	22"/56.4cm
Life Span	Above 30,000 hours
Wire Length	60cm
Warranty	12 months

Amber LED Mini Light Bar Qualifications:

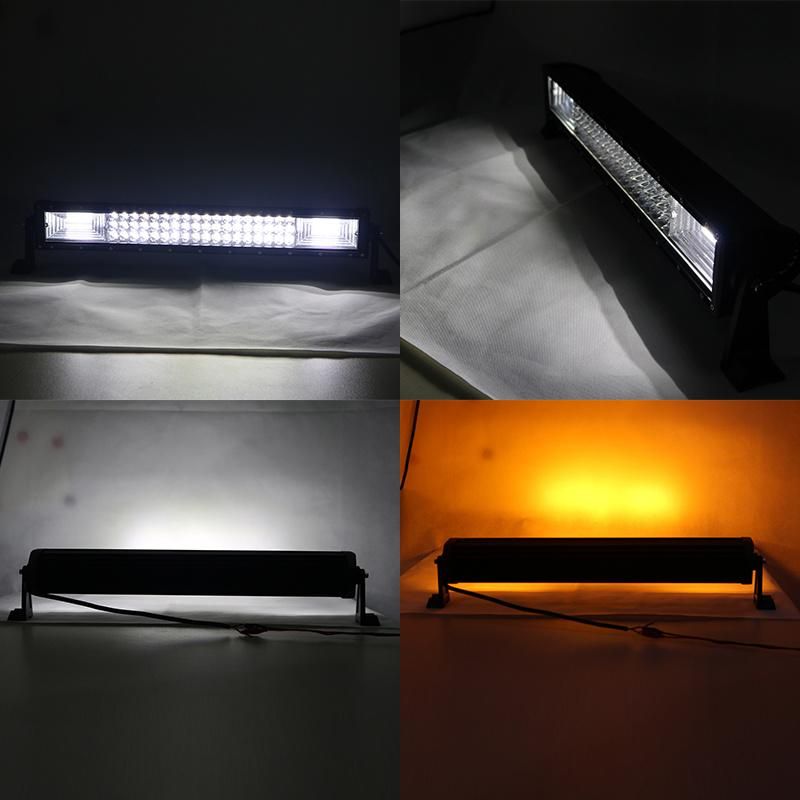

Strobe Lightbar Detail Image:

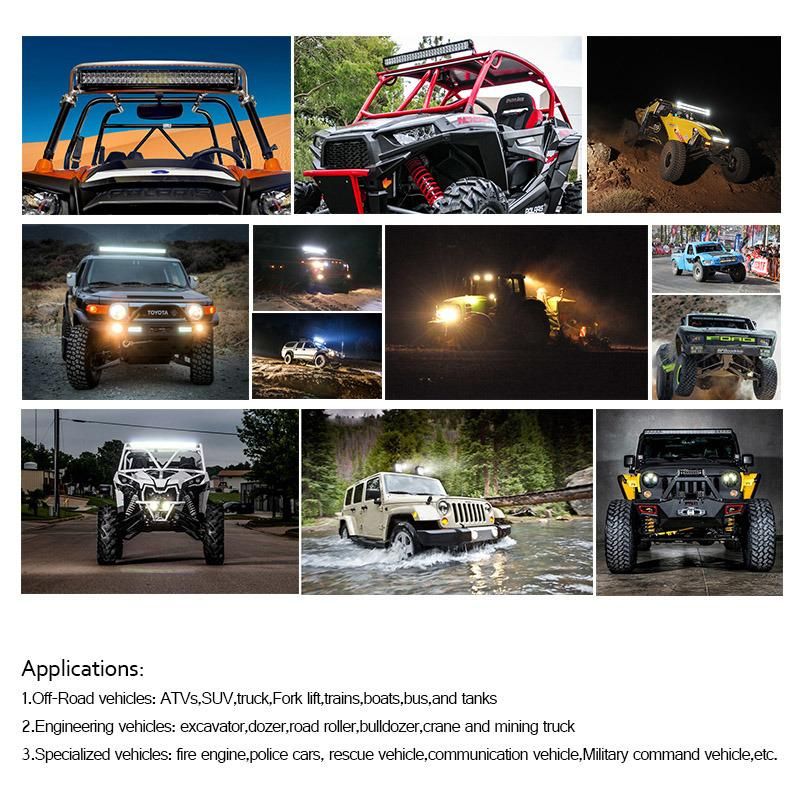

Vehicle Lightbar Application:

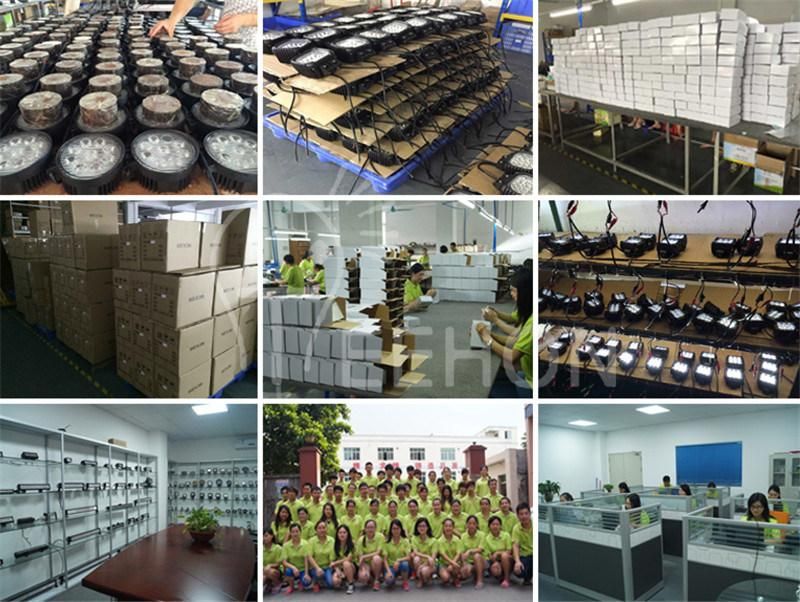

Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of Vehicle Strobe LED and LED headlight. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.

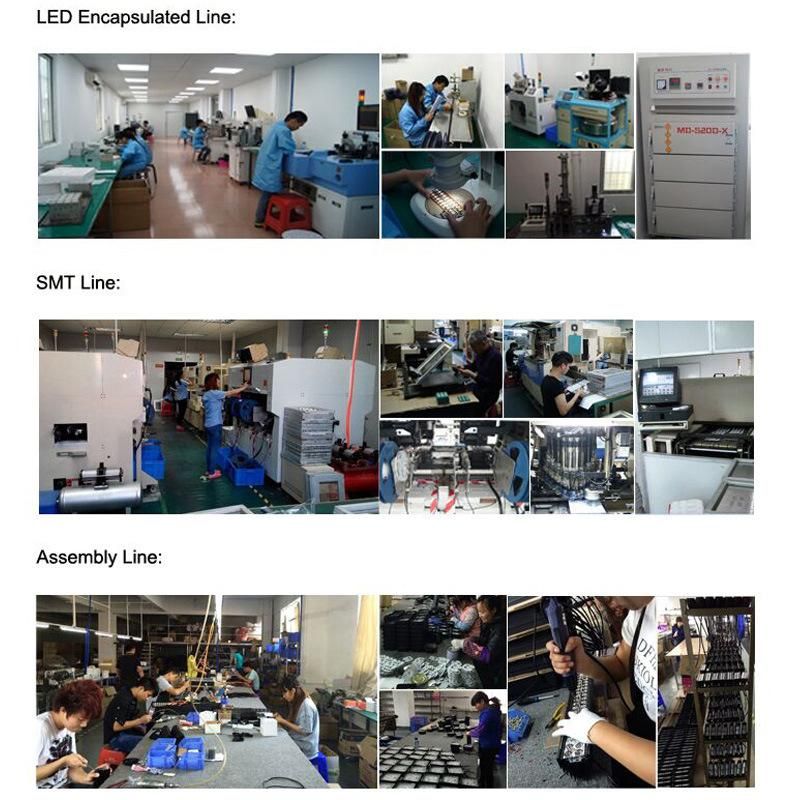

Production Facilities:

Name	No.	Name	No.
(Fuji, Panasonic, Casio) SMT machines	4	pressure testers	3
hot air-reflow systems	2	UV-VIS-Near IR Spectro photo colorimeter	2
wire peeling machines	4	LCR Digital Electric Bridges	3
laser carving machines	2	Oscilloscopes	5
automatic wire peeling machines	2	integrating sphere	1

Size and Package Multicolor LED Light Strip:

Name	piece	G.W	Size
One piece	1pcs	2.51kgs	23*20*11CM
One carton	4pcs/ctn	10.02kgs	72*32*28CM


Shipping for Motorcycle LED Bar:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs Motorcycle LED Lighting & 90,000pcs Rohs Ce LED Work Lights each month.
4.Extraordinary quality & cost control ability: we are the only auto LED light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.
 The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.
  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30   advanced producing & testing facilities

FAQ:

Q: What's your Amber LED Mini Light Bar after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q: Do you accept ODM&OEM Strobe Lightbar orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and LED bulbs in different brands, we also customize circuit board & packaging box as per your requirements.

Q: How to work with you on ODM&OEM Vehicle Lightbar orders?
A: There are three forms of cooperation for choice:
1.Housing customization: we need to negotiate the cost of development and reach an agreement before starting the cooperation;
2.Various colors of housing customization: No extra cost, however the MOQ is 100 pcs;
3.Various colors of LED bulbs customization: MOQ is 10 pcs, meanwhile the price will be increased.

Q: What's the Vehicle Strobe LED MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q: How long is Multicolor LED Light Strip lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q: How to place Motorcycle LED Bar orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
